Repaired spectrograph passes 'aliveness' test
BY WILLIAM HARWOOD
STORY WRITTEN FOR CBS NEWS "SPACE PLACE" & USED WITH PERMISSION
Posted: May 17, 2009

Held up by a stripped screw, spacewalker Michael Massimino applied brute force muscle power to an otherwise delicate operation, breaking off an offending handrail and then carefully unscrewing more than 100 small fasteners to get inside a dead science instrument aboard the Hubble Space Telescope.

After pulling out a blown power supply circuit board, Massimino and crewmate Michael "Bueno" Good carefully installed a replacement card, closed the instrument up and began collecting tools and equipment while engineers at the Goddard Space Flight Center sent commands to verify electrical connectivity in a quick-look "aliveness" test.

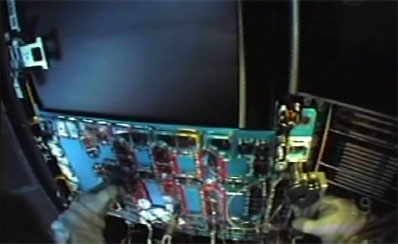

A helmet-mounted camera shows astronauts Mike Massimino removing the STIS electronics box cover to reveal the internal circuit cards (right). Credit: NASA TV

"Atlantis, Houston, with a bit of news from the STOCC (Space Telescope Operations Control Center) if you're ready," astronaut Dan Burbank radioed around 5 p.m.

"We are definitely ready," astronomer-astronaut John Grunsfeld replied from Atlantis.

"We're all happy to report that STIS has come back with a good aliveness test."

Amid cheers from space, Massimino laughed and said, "that sounds great. Thanks so much, Dan."

The goal of the operation was to restore one of two redundant channels in the Space Telescope Imaging Spectrograph, a state-of-the-art instrument that broke down in 2004 when its low-voltage power supply failed. A successful repair today would potentially give Hubble scientists five operational science instruments for the first time in the telescope's 19-year history.

During the first of the Atlantis astronauts' five planned spacewalks, the powerful new Wide Field Camera 3 was installed, along with a replacement science data computer. On Friday, six new stabilizing gyroscopes and three fresh nickel-hydrogen batteries were bolted in place. On Saturday, the new Cosmic Origins Spectrograph was installed and astronauts John Grunsfeld and Andrew Feustel successfully repaired the wide-field channel of the Advanced Camera for Surveys.

The ACS and the Space Telescope Imaging Spectrograph were not designed to be repaired in orbit and as such, they represented the greatest technical challenges for the crew. Going into the mission, engineers said they had more confidence in the maturity of the STIS repair plan and warned reporters that the ACS work was much more uncertain.

As it turned out, they were partly wrong and partly right. The ACS repair went much more smoothly than anyone expected and the astronauts successfully revived the heavily used wide-field channel. But they were unable to restore the camera's high-resolution channel to operation.

Conversely, the STIS repair ran into problems right from the start when a stripped screw prevented Massimino from removing a handrail as required before attempting to open the instrument's main electronics box. In the end, flight controllers opted for a brute-force approach, telling Massimino to simply pull the loose end of the handrail away until the stripped screw snapped off.

Running well behind schedule at that point, Massimino and Good then were stymied when a power tool's battery died, forcing the spacewalkers back to the shuttle Atlantis' airlock to retrieve a spare and to top off spacesuit oxygen supplies.

"Oh, for Pete's sake," Massimino muttered in frustration.

Finally, the astronauts installed a so-called fastener-capture plate and unscrewed 111 small fasteners, trapping the screws and washers between the electronics box cover and capture plates. The cover-capture plate combination then was pulled away, exposing the blown power supply card to view. Using a custom tool to avoid handing the fragile boards, Massimino and Good promptly swapped them out. The electronics box was sealed with a different cover plate, one requiring just two locking pins.

With two operational cameras, two complementary spectrographs and a soon-to-be-reactivated infrared camera known as NICMOS, Hubble is more scientifically powerful now than at any time in its history.

But the astronauts are not yet done with this fifth and final servicing mission. During a final spacewalk Monday, Grunsfeld and Feustel plan to install a final three batteries and a refurbished fine guidance sensor, along with news insulation panels to strengthen areas weakened by Hubble's 19 years in the harsh environment of space.

Massimino and Good had planned to install one such panel today, but that task was deferred when the STIS repair ran long.

"Mass and Bueno, while you're closing the doors (I wanted to tell you) what a great job you did today and how proud we are of you," Atlantis commander Scott Altman called as the spacewalkers were closing the STIS equipment bay. "And also, I want you to take a look around because your spacewalk with Hubble is about to come to an end. We're bringing you in as soon as you close the doors."

"Thanks Scooter," Massimino replied. "The view is magnificent, it's great to work with the world going by and being out here with a good friend, Mike Good, is a pleasure."

"Those are good words, Mass," Good said. "It's really awesome to be out here. ... A lot of work, but well worth it."

Massimino summed up the spacewalkers' feelings, saying "it's a real privilege to get to see what we're seeing and get to work on this magnificent machine. I couldn't be any more grateful for the opportunity."
