Shuttle return gets a 'LIFT' from F-15B
NASA NEWS RELEASE
Posted: February 22, 2005

To help the Space Shuttle safely return to flight, NASA engineers are acquiring data on how insulating foam debris or "divots" behave when these small pieces are shed from the Shuttle's external fuel tank during launch.

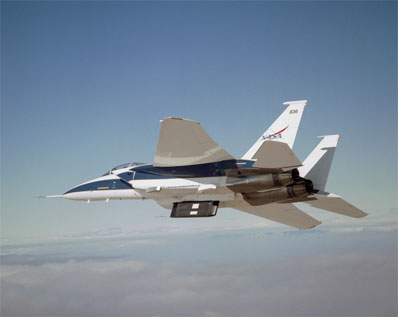

Two panels of shuttle TPS insulation were mounted on the flight test fixture underneath NASA's F-15B during the Lifting Foam Trajectory flight test series. Credit: NASA

NASA's Dryden Flight Research Center at Edwards Air Force Base, Calif., is conducting a series of flight tests of the divots as part of the Return to Flight team effort. The Lifting Insulating Foam Trajectory (LIFT) flight test series at Dryden is using the center's F-15B Research Testbed aircraft to test these "divots" in a real flight environment at speeds up to about Mach 2, or twice the speed of sound.

Small-scale divoting occurs when the adhesive on the external tank thermal protection system (TPS) foam fails. This occurs as a result of decreasing atmospheric pressure combined with increased heating during Shuttle ascent causing air trapped beneath the TPS to expand.

LIFT project manager Stephen Corda said objectives of the current flight tests on the F-15B include determining divot structural survivability and stability in flight and quantifying divot trajectories using videography. The flight data of divot trajectories may also be used for Computational Fluid Dynamic code validation.

"We're using the unique capabilities of the supersonic F-15B aircraft and the aerodynamic flight test fixture to provide a means to eject these debris or divots from the fixture, and then photograph them with a high-speed digital video system, where we're able to video these divots in flight at up to 10,000 frames per second," Corda noted.

NASA's Space Shuttle Systems Engineering and Integration office at the Johnson Space Center (JSC) in Houston, Texas, is funding the LIFT flight tests at NASA Dryden as part of the Space Shuttle Return-to-Flight effort. JSC aeroscience engineer Ricardo Machin said the current LIFT flight tests will help them validate the models that they use for debris transport analysis.

"In particular, it's going to help us understand whether the divots break up once they come off the external tank, and secondly whether they will trim and begin to fly, or if they'll tumble. The difference between trimming and flying makes a huge difference in the amount of kinetic energy that this piece of debris can impart to the shuttle," Machin said.

The LIFT flight test requires two new capabilities: an in-flight foam divot ejection system, and a high-speed video system to track and record the trajectories of the divots in flight. Both capabilities were developed by Dryden engineers in just over two months.

Dryden's LIFT team designed, fabricated, and ground-tested four different divot ejection systems, completing 70 ground tests to determine and refine the best approach. NASA Dryden engineers also designed and procured the very high-speed digital video equipment, including development of a system to synchronize the cameras with the divot ejection system. In addition, they developed videography analysis techniques in order to quantify divot trajectories.
