The Delta 2 rocket BOEING FACT SHEET Posted: May 28, 2003

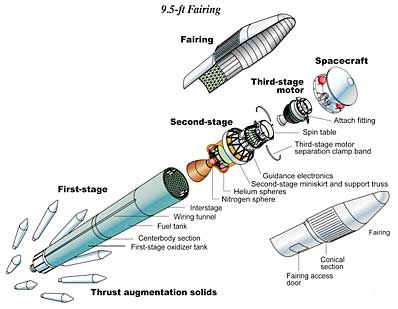

Boeing manufactures Delta rockets in Huntington Beach, Calif., with final assembly in Pueblo, Colo. The 7925-9.5 three-stage launch vehicle has five major assemblies: the first stage, including main engine and nine strap-on solid propellant rocket motors; interstage; second stage; third stage and 9.5-foot diameter payload fairing. The Delta 2 is approximately 126 feet tall and eight feet wide. Manufactured by Rocketdyne, a division of Boeing, the RS-27A main engine operates on liquid oxygen and RP-1 (kerosene). The RS-27A has a sea-level thrust of 200,000 pounds. Each of the Alliant Techsystems solid strap-on motors has a sea-level thrust of 100,270 pounds. The main engine and six of the nine solid rocket motors burn at liftoff, delivering total thrust of 789,420 pounds. An Aerojet AJ10-118K engine powers the second stage and burns Aerozine-50 fuel and nitrogen tetroxide oxidizer. Ignited at altitude, the engine has a vacuum-rated thrust of 9,815 pounds. The third stage is Thiokol's Star 48B solid-propellant stage.
Delta 2 rockets can be configured as two-or three-stage launch vehicles with a varying number of strap-on solid rocket boosters and two sizes of payload fairings, depending on mission requirements. The Boeing Delta program is headquartered at Boeing Expendable Launch Systems in Huntington Beach, Calif. Manufacturing is located at the Boeing facilities in Pueblo, Colo., and Decatur, Ala.
|
|
|
|
Flight Data File Vehicle: Delta 2 (7925) Payload: NASA's Mars Exploration Rover-A Launch date: June 10, 2003 Launch time: 1:58:47 p.m. EDT (1758:47 GMT) Launch site: SLC-17A, Cape Canaveral, Florida Satellite broadcast: AMC 2, Transponder 9, C-band  Pre-launch briefing Mission preview - Our story examining the Mars Exploration Rover project. Launch windows - A chart listing the daily launch times for MER-A. Launch timeline No. 1 - Chart with times and descriptions of events to occur during the launch if the first daily opportunity is used. Launch timeline No. 2 - Chart with times and descriptions of events to occur during the launch if the second daily opportunity is used. Launch hazard area - A map of the restricted area during liftoff. Ground track - See the trajectory the rocket will follow during its flight. Getting to Mars - Our story previewing the rovers' descent and landing to the Martian surface. MER spacecraft - A technical look at the parts and pieces of the Mars Exploration Rover spacecraft. Mission science - A look at the science instruments and objectives for the Mars rovers. Future exploration - Our story looking at NASA's plans for Mars missions through the decade. Delta 2 rocket - Overview of the Delta 2 Heavy-model rocket used in this launch. SLC-17 - The launch complex where Delta rockets fly from Cape Canaveral. Delta directory - See our coverage of previous Delta rocket flights. Gemini 7  Gemini 7: The NASA Mission Reports covers this 14-day mission by Borman and Lovell as they demonstrated some of the more essential facts of space flight. Includes CD-ROM. Choose your store:U.S. - U.K. - E.U. - Worldwide Apollo patches  The Apollo Patch Collection: Includes all 12 Apollo mission patches plus the Apollo Program Patch. Save over 20% off the Individual price. Choose your store:U.S. - U.K. - E.U. - Worldwide Mars Rover mission patch  A mission patch featuring NASA's Mars Exploration Rover is available from our online.Choose your store:U.S. - U.K. - E.U. - Worldwide Apollo 9 DVD  On the road to the moon, the mission of Apollo 9 stands as an important gateway in experience and procedures. This 2-DVD collection presents the crucial mission on the voyage to the moon.Choose your store:U.S. - U.K. - E.U. - Worldwide
|
|||
|
